Stainless steel AISI 304 chamber and exterior as standard
Vacuum Dryers
VT-30 & VT-60
Design vacuum:
> 1 (mbar)
Vacuum Dryers
VT-30 & VT-60
Design vacuum:
> 1 (mbar)
Vacuum Dryer
VT-30 & VT-60
Includes a high-end premium dry vacuum pump
Touchscreen high resolution human machine interface
Vacuum control valve as standard
Shelves heated up to 150 °C with built-in heaters
Sample temperature sensor as standard
Overpressure safety door
Premium dry vacuum pump

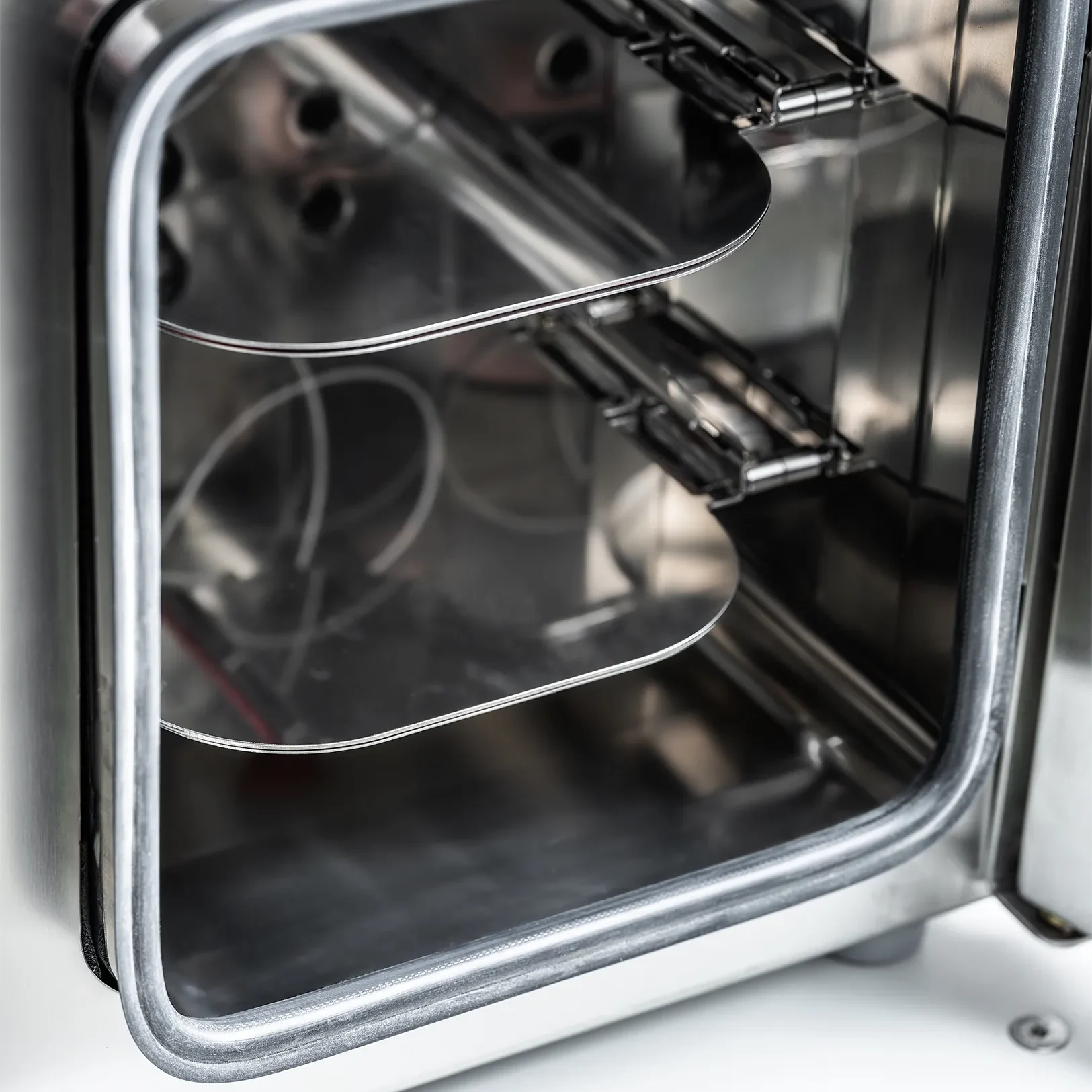

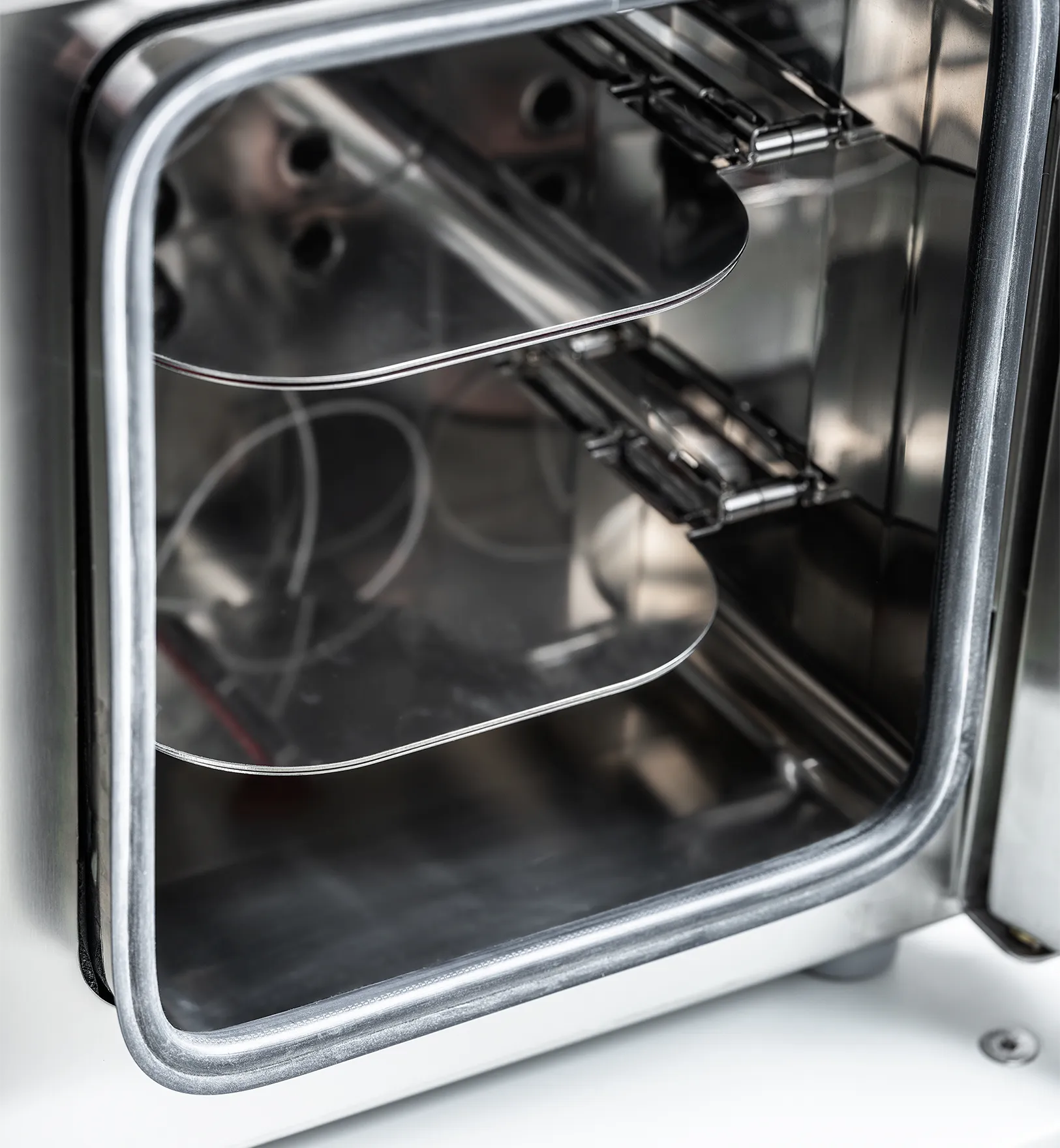

Easy to clean

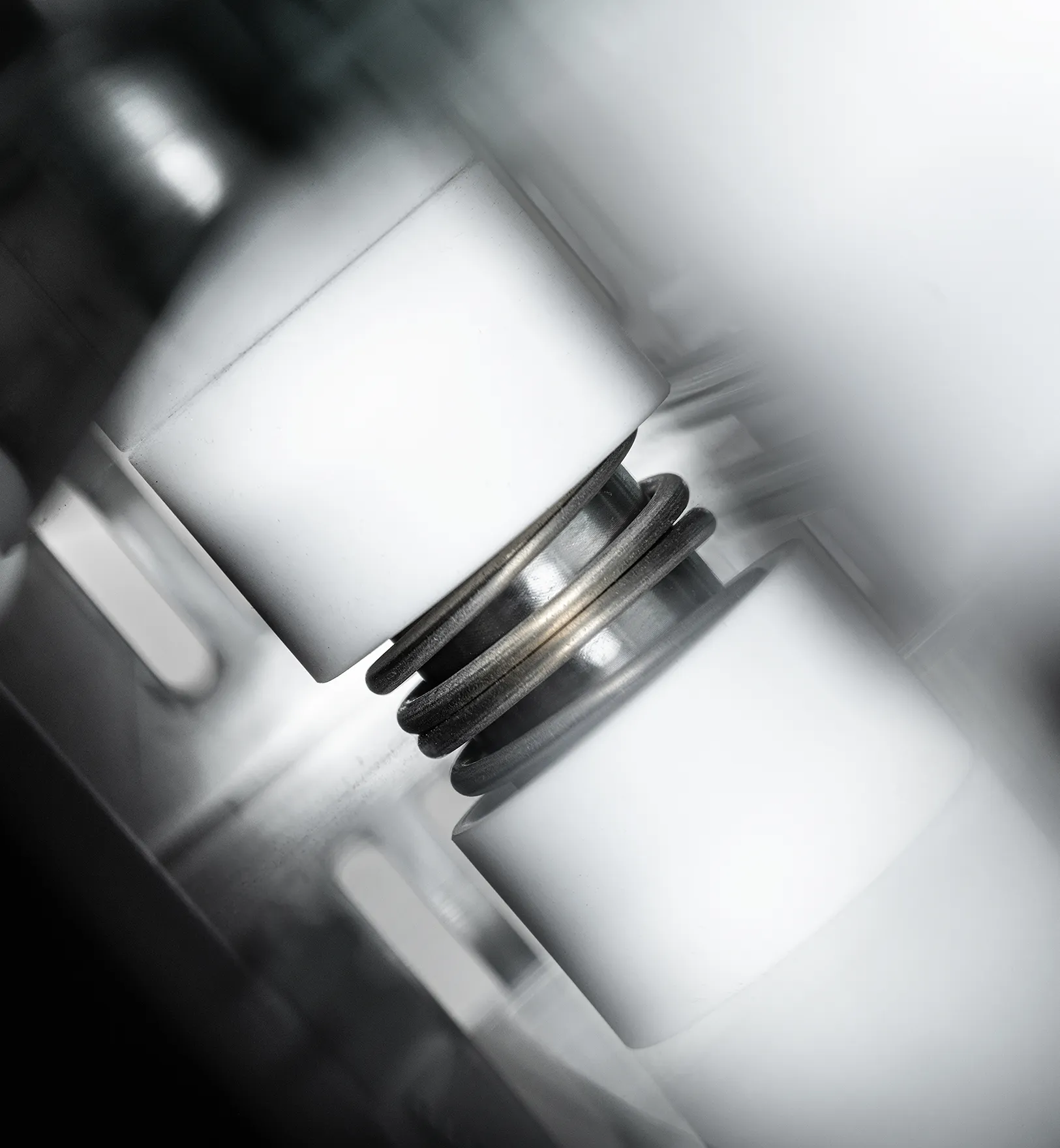

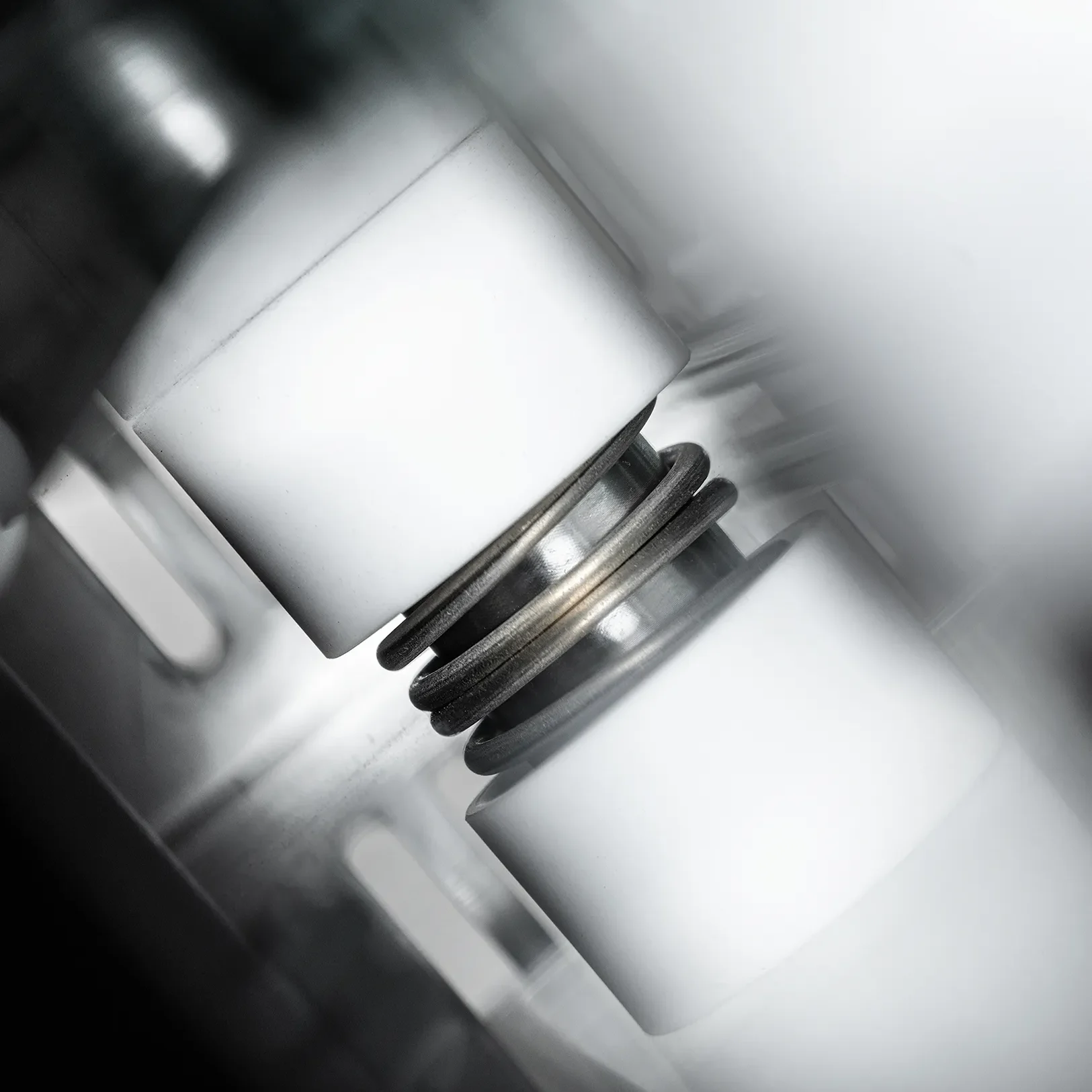

Spring loaded no overpressure door
Stainless steel tray

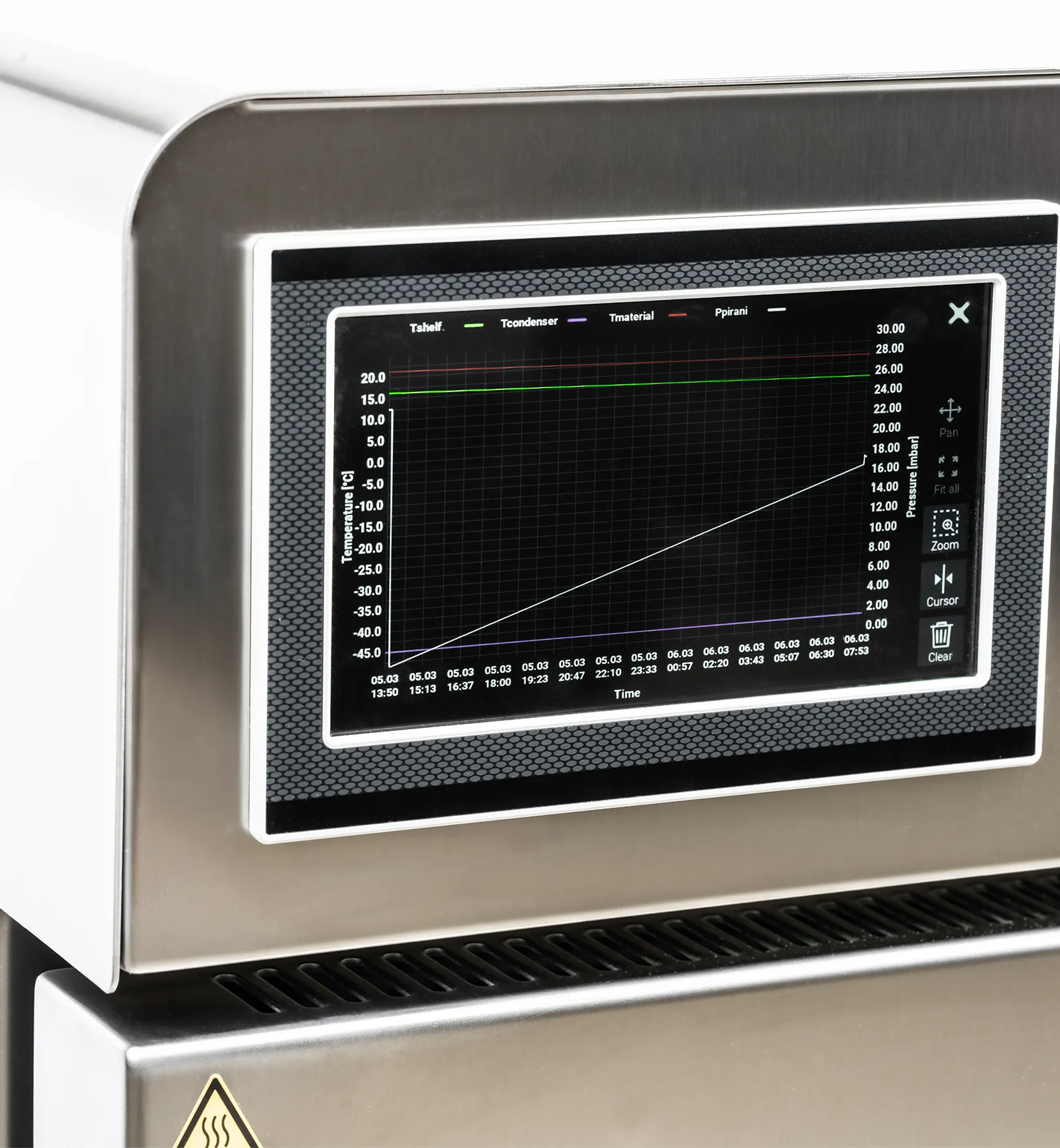

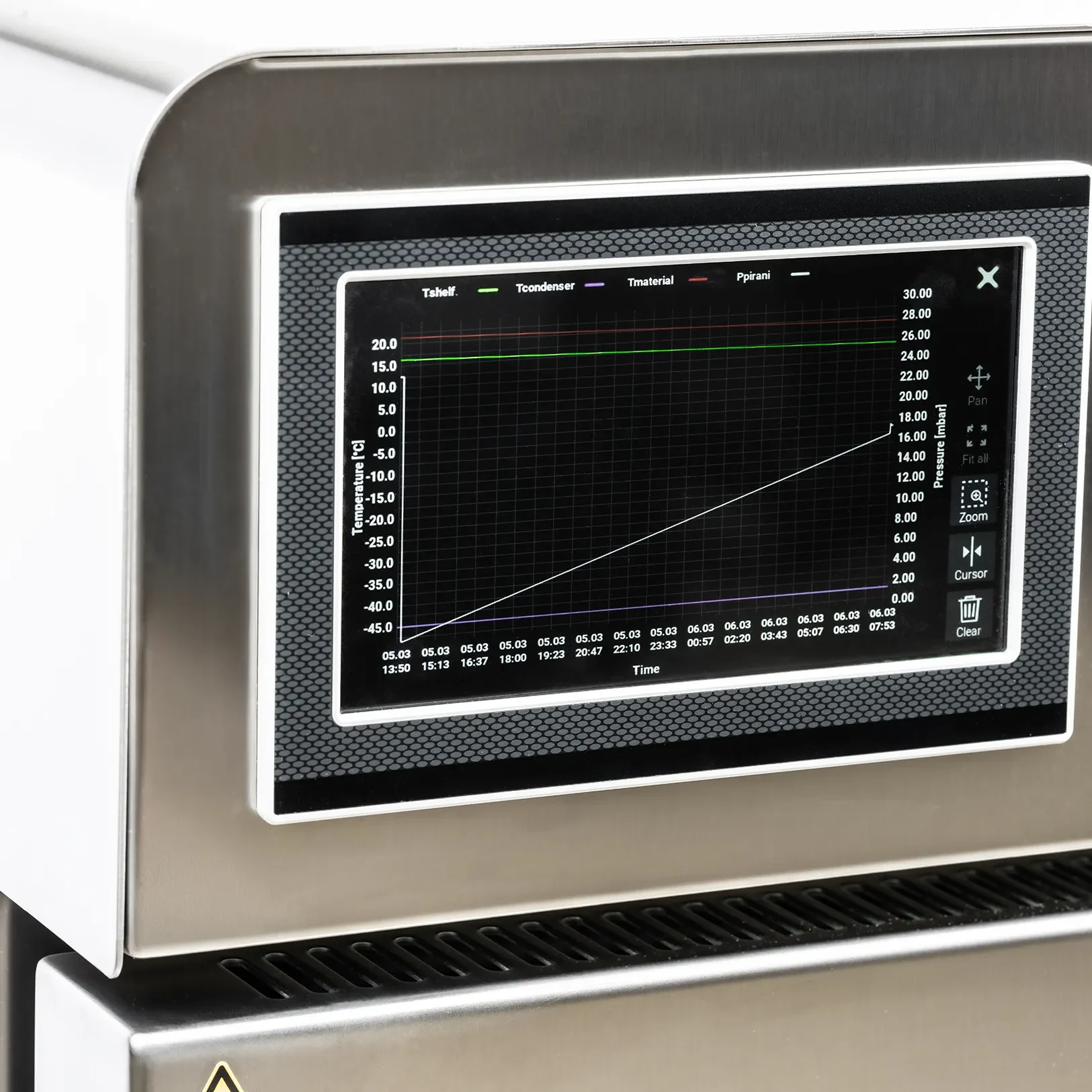

Process data history with graph

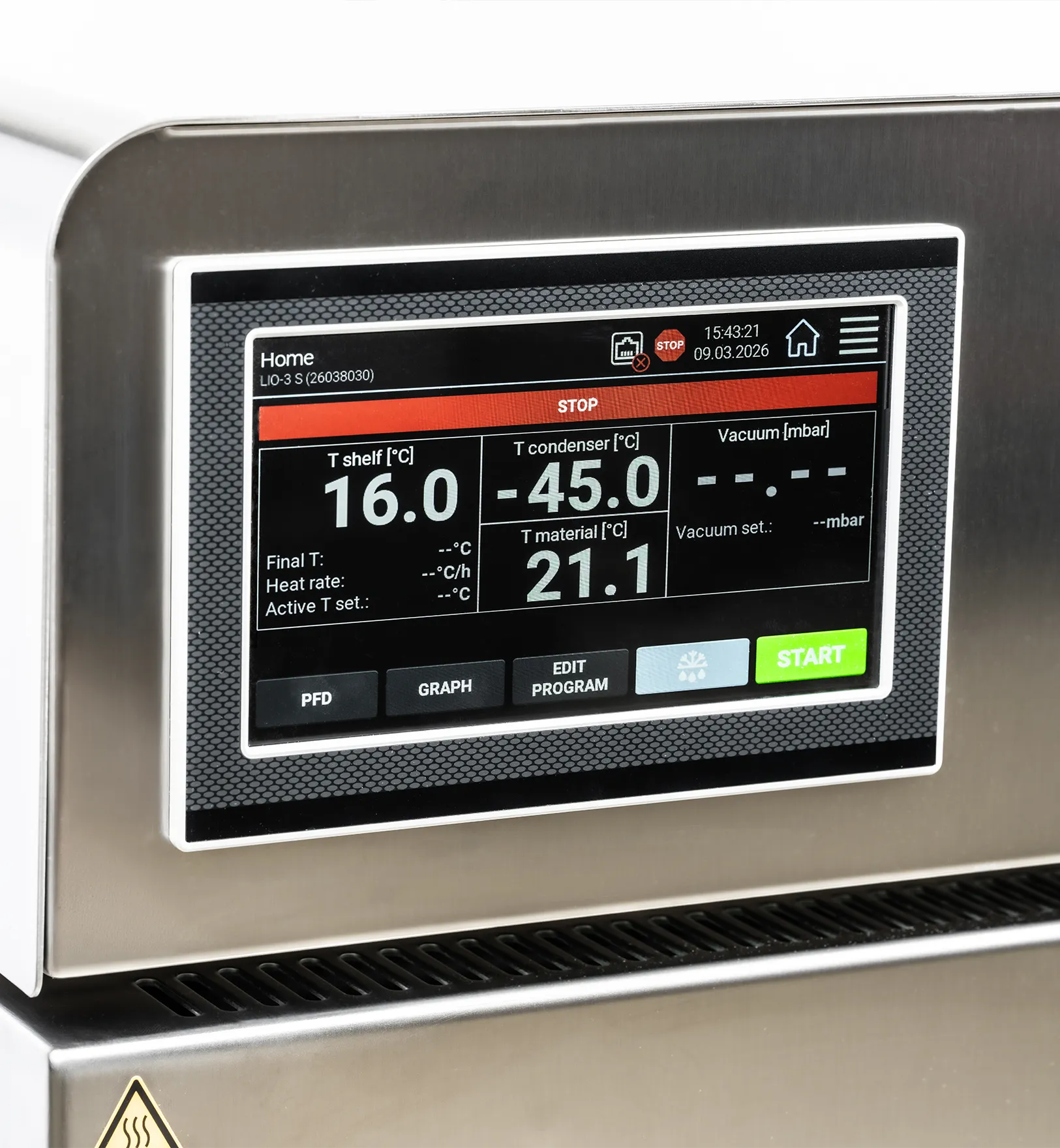

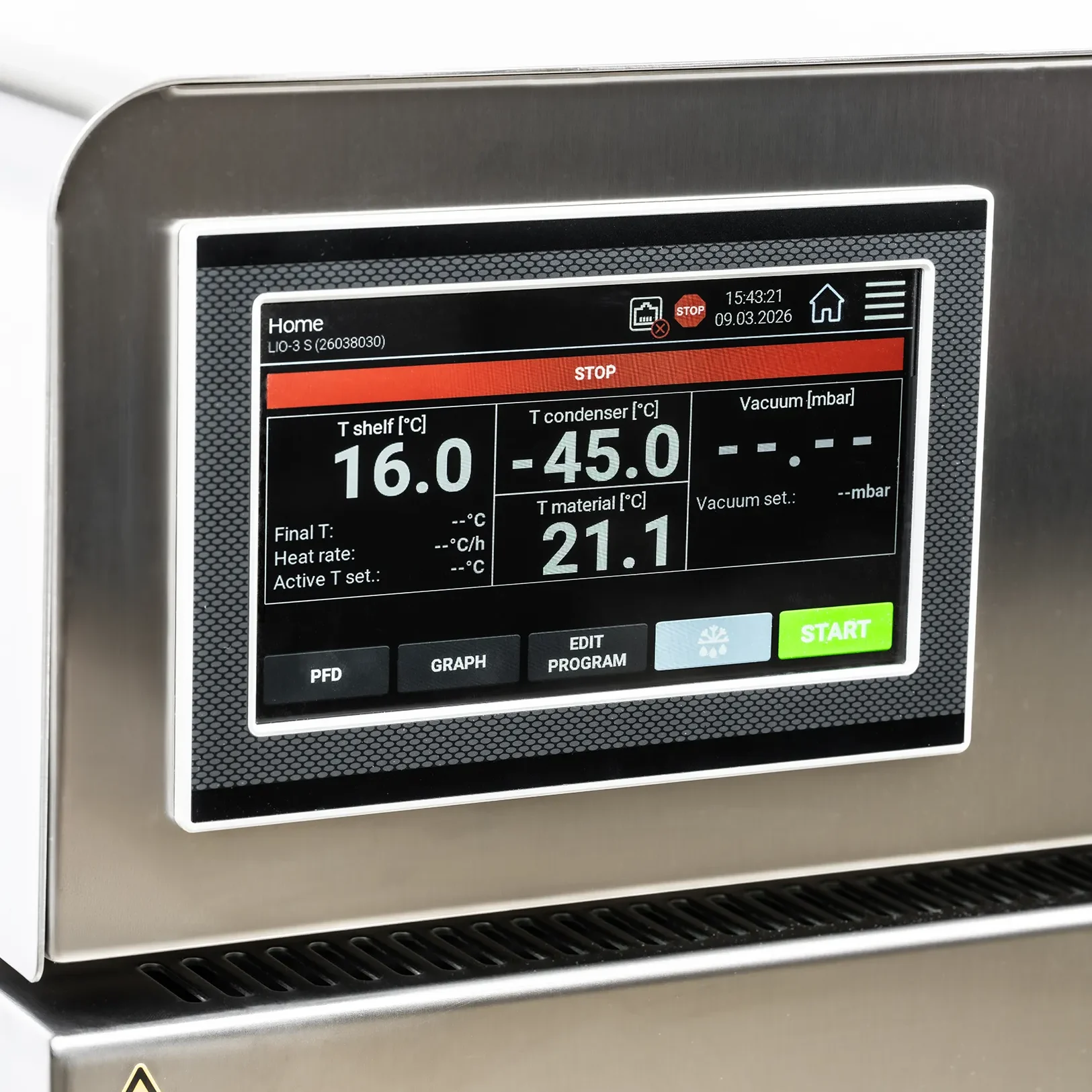

7-inch Touchscreen HMI
Premium dry vacuum pump
Easy to clean
Spring loaded no overpressure door
Stainless steel tray
Process data history with graph
7-inch Touchscreen HMI
Technical description
| Technical Specifications: | VT-30 | VT-60 |
| External dimension (WxDxH) in mm | 430 x 640 x 650 | 490 x 850 x 650 |
| Temperature range (°C) | TA….+150 | TA….+150 |
| Temperature stability (°C) | ± 0,1 @ +100 | ± 0,1 @ +100 |
| Design vacuum (mbar) | > 1 | > 1 |
| Number of shelves | 2 | |
| Shelf size (WxD) in mm | 215 x 275 | 285 x 495 |
| Vacuum contro | Yes | |
| Shelf spacing (mm) | 125 | |
| Heating | Direct heating in shelves | |
| Access port | Yes: NW – 40 | |
| User interface | Touchscreen high resolution | |
| Doo | Safety glass door, transparent | |
| Sensors | Temperature of each shelf, material temperature, and vacuum can be monitored. Web application view available. | |
| Vacuum pum | Built-in high-end premium dry vacuum pump | |
| Power supply | 230V / 50 Hz | |
| Wattage (W) | 650 | 950 |
| Mass ( kg) (including vacuum pump) | 70 | 98 |
